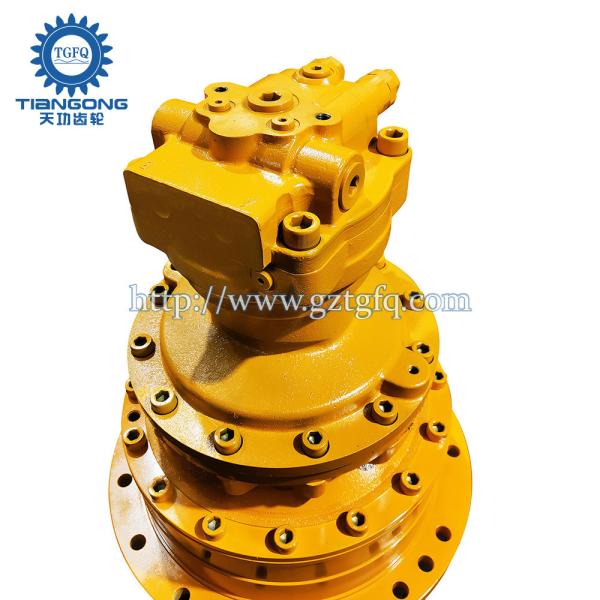

R305-7 Hyundai Excavator Swing Drive 31N8-12020
Hyundai R305-7 Hydraulic Excavator Rotary Reducer Assembly
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
| |
| Model:R305-7 |
| Brand: TGFQ |
| Part Number:31N8-10120 / 31N8-12020 |
| Type: M2X170 |
| egory: Excavator Swing Drive Assy |
| Place of Origin: Huangpu , Port |
| Color: Yellow |
| New Item: Condition:New |
| Stock: Available |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |
SWING MOTOR(#0151-)
Parts on group SWING MOTOR(#0151-):
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | 31N8-10120 | [1] | SWING MOTOR ASSY | SEE 4100 |
| N*. | 31N8-10121 | [1] | SWING MOTOR ASSY | |
| N*. | 31N8-10122 | [1] | SWING MOTOR ASSY | |
| N*. | 31N8-10123 | [1] | SWING MOTOR ASSY | |
| *-1. | 31N8-12010 | [1] | SWING MOTOR UNIT | |
| 31 | XKAH-00121 | [1] | VALVE-BRAKE | |
| 51 | XKAH-00122 | [2] | VALVE-RELIEF | |
| 52 | XKAH-00115 | [1] | BLOCK | |
| 101 | XKAH-00162 | [1] | SHAFT-DRIVE | |
| 106 | XKAH-00161 | [3] | SPACER | |
| 111 | XKAH-00160 | [1] | BLOCK-CYLINDER | |
| 113 | XKAH-00159 | [1] | BUSHING-SPHERICAL | |
| 114 | XKAH-00158 | [1] | SPRING | |
| 116 | XKAH-00157 | [12] | ROD-PUSH | |
| 117 | XKAH-00156 | [1] | SPACER F | |
| 118 | XKAH-00155 | [1] | SPACER R | |
| NS121. | XKAH-00154 | [9] | PISTON | |
| NS122. | XKAH-00153 | [9] | SHOE | |
| 123 | XKAH-00152 | [1] | RETAINER | |
| 124 | XKAH-00151 | [1] | PLATE-SHOE | |
| 131 | XKAH-00150 | [1] | PLATE-VALVE | |
| 301 | XKAH-00149 | [1] | CASING | |
| 303 | XKAH-00546 | [1] | CASING-VALVE | |
| 304 | XKAH-00147 | [1] | COVER-FRONT | -#1633,#1638 |
| 304 | XKAH-00930 | [1] | COVER-FRONT | 1634-1637,1639- |
| 351 | XKAH-00146 | [2] | PLUNGER | |
| 355 | XKAH-00145 | [2] | SPRING | |
| 401 | XKAH-00144 | [4] | BOLT-SOCKET | |
| 432 | XKAH-00143 | [2] | RING-SNAP | |
| 433 | XKAH-00142 | [1] | RING-SNAP | |
| 437 | XKAH-00141 | [1] | RING-SNAP | |
| 438 | XKAH-00140 | [1] | RING-SNAP | |
| 443 | XKAH-00139 | [1] | BEARING-ROLLER | |
| 444 | XKAH-00138 | [1] | BEARING-ROLLER | |
| 451 | XKAH-00137 | [2] | PIN-SPRING | |
| 464 | XKAH-00136 | [1] | PLUG-VP | |
| 468 | XKAH-00136 | [2] | PLUG-VP | |
| 469 | XKAH-00135 | [2] | PLUG | |
| K471. | XKAH-00134 | [1] | O-RING | |
| K472. | XKAH-00133 | [1] | O-RING | |
| K485. | XKAH-00052 | [1] | O-RING | |
| K487. | XKAH-00052 | [2] | O-RING | |
| K488. | XKAH-00132 | [2] | O-RING | |
| K491. | XKAH-00131 | [1] | SEAL-OIL | -#1633,#1638 |
| K491. | XKAH-00929 | [1] | SEAL-OIL | 1634-1637,1639- |
| 702 | XKAH-00130 | [1] | PISTON-BRAKE | |
| K706. | XKAH-00129 | [1] | O-RING | |
| K707. | XKAH-00128 | [1] | O-RING | |
| 712 | XKAH-00127 | [20] | SPRING-BRAKE | |
| 742 | XKAH-00126 | [2] | PLATE-FRICTION | |
| 743 | XKAH-00125 | [3] | PLATE-SEPERATION | |
| 744 | XKAH-00120 | [2] | PLUG | |
| 745 | XKAH-00119 | [1] | PLUG | |
| 746 | XKAH-00118 | [1] | PLUG | |
| 841 | XKAH-00114 | [2] | BOLT-SOCKET | |
| 993 | XKAH-00124 | [1] | PLUG | |
| 994 | XKAH-00123 | [1] | PLUG | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4110 |
| K. | XKAH-00465 | [1] | SEAL KIT | SEE ILLUST |
| S. | XKAH-00615KT | [1] | PISTON ASSY | SEE ILLUST |
| N. | @ | [1] | NOT INDIVIDUALLY SUPPLIED | |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
