DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC

Name: DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC
Brand: TGFQ
Price: 200.00 USD

Quality DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC wholesale

Brand Name : TGFQ

Model Number : DX260 DX255LC

Place of Origin : CHINA

MOQ : 1

Price : 200.00-800.00USD

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 1000 pcs / month

Delivery Time : 1-3days

Packaging Details : NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Product Name : Excavator Swing Gearbox

Model : DX260 DX255LC

Part Number : K1004037A

Motor No. : M2X210

Quality : High Guarantee

Applicable Industries : Machinery Repair Shops, Energy & Mining

Contact Now

DOOSAN DX260 Swing Device DAEWOO DX260 Swing Reduciton Gearbox DX260LC Reducer Gear

Product

Model:DX260 DX255LC

Brand: TGFQ

Part Number: K1004037A

Part Name: Excavator swing reducer gearbox without motor

Gearing Arrangement: Planetary

Process: Heat Treatment

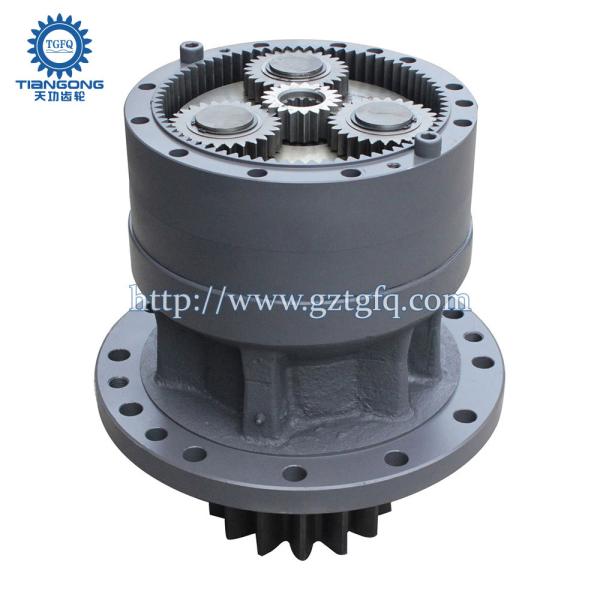

Product Photo:

DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC

Drawing:

DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC

Pos.	Part No	Qty	Parts name
-.	K1004037A	[1]	SWING REDUCTION GEAR Komatsu China
			["desc: REDEUTEUR D'ORIENTATION"]
1	K1004038B	[1]	SHAFT Komatsu China
			["desc: ARBRE"]
2	K1002539A	[1]	CASE Komatsu China
			["desc: CARTER"]
3	K1002540A	[1]	CARRIER NO.2 Komatsu China
			["desc: PORTEUR"]
4	K1002541A	[1]	GEAR;SUN NO.2 Komatsu China
			["desc: PIGNON"]
5	K1002542	[4]	GEAR;PLANET NO.2 Komatsu China
			["desc: PIGNON"]
6	K1002543	[4]	PLATE;SIDE NO.2 Komatsu China
			["desc: PLAQUE"]
7	K1002544	[4]	PIN Komatsu China
			["desc: GOUPILLE"]
8	K1002545	[4]	BUSH Komatsu China
			["desc: DOUILLE"]
9	K1002546	[1]	CARRIER NO.1 Komatsu China
			["desc: SUPPORT"]
10	K1004040B	[1]	GEAR;SUN NO.1 Komatsu China
			["desc: PIGNON"]
11	K1002548	[3]	GEAR;PLANET NO.1 Komatsu China
			["desc: PIGNON"]
12	K1002549	[3]	PLATE;SIDE Komatsu China
			["desc: PLAQUE"]
13	K1002550	[3]	PIN Komatsu China
			["desc: GOUPILLE"]
14	K1006981	[1]	GEAR;RING Komatsu China
			["desc: PIGNON"]
15	K1002552	[1]	PLATE;THRUST Komatsu China
			["desc: PLAQUE"]
17	K1003384A	[4]	PIN;LOCK Komatsu China
			["desc: GOUPILLE"]
18	K1002554A	[1]	SPACER Komatsu China
			["desc: DOUILLE D'ECARTEMENT"]
19	K1004041A	[1]	COLLAR Komatsu China
			["desc: COLLIER"]
20	K1002556	[1]	PLATE Komatsu China
			["desc: PLAQUE"]
21	K1002558	[1]	RING;LOCK Komatsu China
			["desc: BAGUE"]
22	K1002559	[1]	BEARING Komatsu China
			["desc: ROULEMENT"]
23	K1003682A	[1]	BEARING Komatsu China
			["desc: ROULEMENT"]
24	K1005719	[1]	SEAL;OIL Komatsu China
			["desc: JOINT"]
25	S5741361	[4]	PIN;SPRING Komatsu China
			["desc: GOUPILLE"]
26	2181-1116D4	[1]	PLUG Komatsu China
			["desc: BOUCHON"]
27	S5810010	[3]	PLUG Komatsu China
			["desc: BOUCHON"]
28	K1004042A	[1]	GEAR;PINION Komatsu China
			["desc: PIGNON"]
29	S2226671	[12]	BOLT;SOCKET Komatsu China
			["desc: BOULON A 6 PANS CREUX"]
30	140-01343A	[1]	PIPE Komatsu China
			["desc: TUYAU"]
31	119-00020	[1]	BAR;LEVEL Komatsu China
			["desc: BARRE DE NIVEAU"]
32	K1002567	[3]	PLATE;SIDE Komatsu China
			["desc: PLAQUE"]
33	S6500600	[3]	RING;SNAP Komatsu China
			["desc: BAGUE D'ARRET"]
34	2120-1363	[4]	BOLT;SOCKET Komatsu China
			["desc: BOULON A 6 PANS CREUX"]
35	2403-1039A	[1]	PLATE Komatsu China
			["desc: PLAQUE"]
36	2126-9001	[1]	WIRE Komatsu China
			["desc: FIL"]
37	K1003386	[3]	BUSH Komatsu China
			["desc: DOUILLE"]
40	K9004901	[1]	CARRIER NO.1 ASS'Y Komatsu China
			["desc: PORTEUR"]
41	K9004902	[1]	CARRIER NO.2 ASS'Y Komatsu China
			["desc: PORTEUR"]

Main Features:

Specifiions
Completely interchangeable with original
Very competitive price
Low-noise, high efficiency, high reliability, long life
Small size, high power density
Excellent oil absorption properties.
For engineering machinery, maritime and boat and industrial machinery etc.
For open-loop Swashplate axial piston pump.
Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.
Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
Drive shaft can withstand the axial and radial loads
For pass-axis structure, and for multi-loop system


DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

DX260 Swing Device Daewoo Swing Reduciton Gearbox DX260LC

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts

Q: How long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
